Quick Preview
The perfect combination of lightweight technology and reliability provides the truck with longer service life, lower transport cost and more economical operation.
The application of information-based and automation technologies makes mining equipment management more efficient.
Electronic-controlled engine and automatic transmission make operation more convenient and efficient.

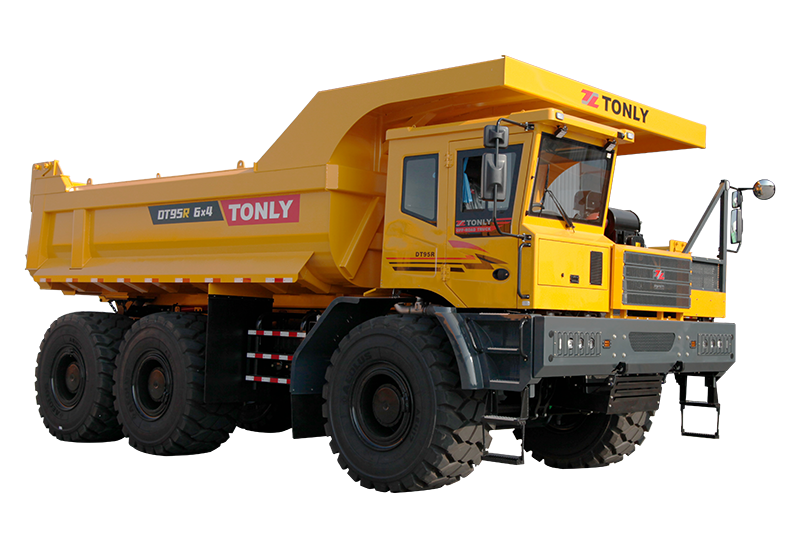

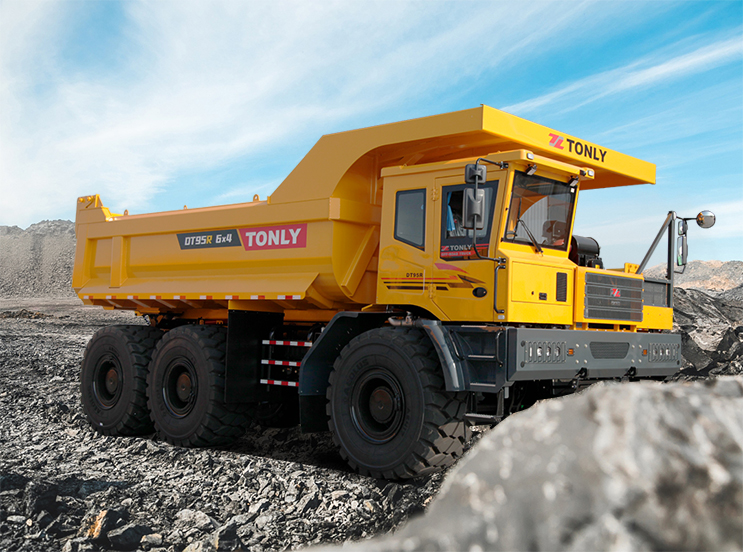

| Model | DT95(R) |
|---|---|
| Manufacturers | Shaanxi Tonly Heavy Industries Co., Ltd. |
| Drive mode | 6×4 |
| Maximum total weight(t) | 95 |
| Rated load mass(t) | 60 |
| Overall mass(t) | 35 |
| Overall size(mm) | 9700×4075×4300 |
| Wheelbase(mm) | 4075+2050 |
| Wheel track(mm) | 3170/3170 |
| Minimum ground clearance(mm) | 570 |
| Minimum turning radius(m) | 12.5 |
| Maximum height of bucket lift(mm) | 9680 |
| Maximum angle of bucket lift(°) | 52 |
| Loading height(mm) | 3708 |
| Braking distance(m) | |
| Maximum climbing degree(%) | 35 |
| Maximum speed(km/h) | 50 |
| Engine | |
| Model | WP14TG765E304 |
| Manufacturer | Weichai Power Co., Ltd. |
| Power(hp/kw) | 560/412 |
| Transmission | |
| Model | FC6A250 |
| Manufacturer | Xi'an FC Intelligence Transmission Co.,LTD. |
| Input torque（N·m) | 2400 |
| Axle | |
| Manufacturer | Shaanxi Hande AXLE Co., Ltd. |
| Load（t) Front axle +middle axle +rear axl | 25+35+35 |
| Tires / Rims | |
| Tire model | 875/65R29 |
| Rim size | 27.00/3.0-29 |
| Container | |
| Base plate material/thickness(mm) | NM400/16 |
| Rear plate material/thickness(mm) | NM400/12 |
| Front plate material/thickness(mm) | NM400/10 |
| Side plate material/thickness(mm) | NM400/12 |
| Container capacity(m³) | 30 |
| Hydraulic system | |
| Model | FC191 |
| Manufacturer | HYVA MECHANICS (CHINA) CO., LTD. |
| Steering device | Fully hydraulic steering |
| Container lift time（s) | 20 |
| Container descent time（s) | 15 |
| Weight distribution | |
| No load | |
| Front axle(kg) | 13000 |
| Rear axle(kg) | 22000 |
| Total weight(kg) | 35000 |
| Heavy load | |
| Front axle(kg) | 25000 |
| Rear axle(kg) | 70000 |
| Total weight(kg) | 95000 |
