Quick Preview

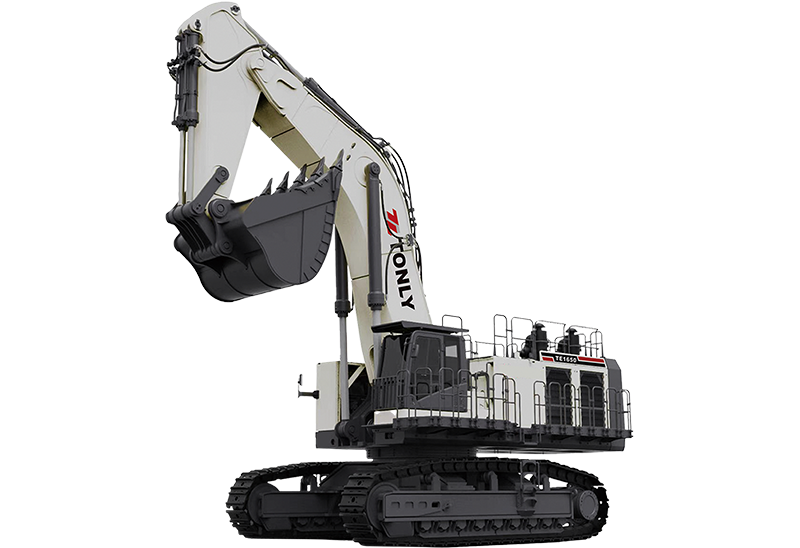

| Model | TE1650 | ||
|---|---|---|---|
| Operating weight(Kg) | 163000 | ||
| Bucket capacity(m³) | 10 | ||
| Engine | Model | CumminsQSM15 | |
| Direct injection | ✓ | ||
| Four strokes | ✓ | ||
| Water cooled | ✓ | ||
| Turbocharged | ✓ | ||
| Air to air intercooler | ✓ | ||
| Number of cylinders | 2X6 | ||
| Rated power/speed(ISO)(Kw/rpm) | 2X563.2/2100 | ||
| Maximum torque/speed(N.m) | 2X3000/1400 | ||
| Piston displacement(L) | 2X16.12 | ||
| Main performance | Travel speed(Max/Min)(km/h) | 3.2/2.2 | |
| Swing speed(r/min) | 5.5 | ||
| Gradeability | 48% | ||
| Ground pressure(kpa) | 157 | ||
| Bucket digging force(kN) | 625 | ||
| Arm digging force(kN) | 542 | ||
| Maximum tractive force(kN) | 1045 | ||
| Hydraulic system | Main pump | Variable pump | |
| Maximum flow of main pump(L/min) | 4X504 | ||
| Relief valve setting pressure(Mpa) | 34.3 | ||
| Travel system pressure(Mpa) | 26 | ||
| Swing system pressure(Mpa) | 26 | ||
| Pilot system pressure(Mpa) | 3.9 | ||
| Oil Capacity | Fuel tank capacity(L) | 2000 | |
| Hydraulic tank capacity(L) | 1800 | ||
| Engine oil capacity(L) | 2X31 - 52 | ||
| Outline dimension | A | Total length(mm) | 15110 |
| B | Total height(mm) | 5750 | |
| C | Total width(mm) | 5770 | |
| D | Ground clearance of platform(mm) | 2070 | |
| E | Chassis ground clearance(mm) | 1130 | |
| F | Platform tail slewing radius(mm) | 5310 | |
| G | Wheel tread(mm) | 5820 | |
| H | Total track length(mm) | 7365 | |
| I | Track distance(mm) | 4230 | |
| J | Track width(mm) | 4980 | |
| K | Width of track link(mm) | 750 | |
| L | Cab roof height(mm) | 5090 | |
| N | Upper - structure width(mm) | 5660 | |
| Working range | Boom length(mm) | 7600 | |
| Arm length(mm) | 3400 | ||
| a | Max. digging height(mm) | 13350 | |
| b | Max. dumping height(mm) | 8420 | |
| c | Max. digging depth(mm) | 7855 | |
| d | Digging depth (2.44m; horizontal)(mm) | 6910 | |
| e | Max. vertical digging depth(mm) | 4880 | |
| f | Max. digging radius(mm) | 14300 | |
| g | Max. digging reach at ground level(mm) | 13800 | |
| h | Min. front slewing radius(mm) | 6455 | |
