Quick Preview
It is equipped with high-horsepower engine for mining, manual transmission for mining, large-tonnage engineering axle, flexible structure frame and off-road tire, with perfect structure, stable performance and reliable quality. With load capacities ranging from 40 tons, 60 tons, 70 tons, 80 tons to 90 tons, the trucks are widely used in open pit mines, cement mines, quarries, large-scale earthworks and other fields, with attendance rate of more than 90%, low fuel consumption, and high cost-performance ratio.

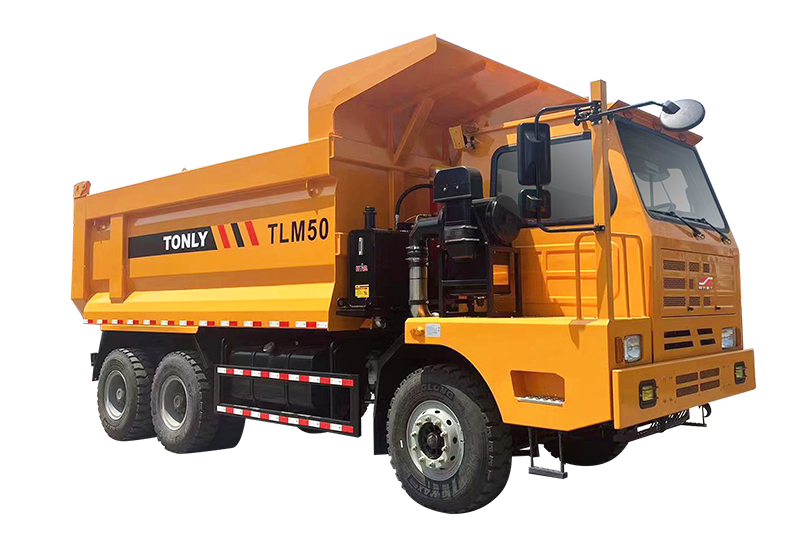

| Model | TLM50 |
|---|---|
| Manufacturers | Shaanxi Tonly Heavy Industries Co., Ltd. |
| Drive mode | 6×4 |
| Maximum total weight (t) | 50 |
| Rated load mass (t) | 35 |
| Overall mass (t) | 15 |
| Overall size (mm) | 8600×2550×3450 |
| Wheel base (mm) | 3775+1400 |
| Wheel track (mm) | 2085/1850 |
| Minimum ground clearance (mm) | 260 |
| Minimum turning radius (m) | 11 |
| Maximum height of bucket lift (mm) | 7100 |
| Maximum angle of bucket lift (°) | 41 |
| Loading height (mm) | 3000 |
| Maximum climbing degree (%) | 25 |
| Maximum speed (km/h) | 50 |
| Engine | |
| Model | WP10.380E22 |
| Manufacturer | Weichai Power Co., Ltd. |
| Power (hp/kw) | 380/280 |
| Transmission | |
| Model | 10JSD180T |
| Manufacturer | Xi'an FC Intelligence Transmission Co.,LTD. |
| Input torque(N·m) | 1800 |
| Axle | |
| Manufacturer | Shaanxi Hande AXLE Co., Ltd. |
| Load(t) Front axle +middle axle +rear axle | 9.5+16+16 |
| Tires / Rims | |
| Tire model | 12.00R20 |
| Rim size | 8.5-20 |
| Container | |
| Base plate material/thickness(mm) | T700/10 |
| Rear plate material/thickness(mm) | T700/8 |
| Front plate material/thickness(mm) | T700/8 |
| Side plate material/thickness(mm) | T700/8 |
| Loading capacity(m3) | 21 |
| Hydraulic system | |
| Model | FC157 |
| Manufacturer | HYVA MECHANICS (CHINA) CO., LTD. |
| Steering device | Mechanical Steering |
| Container lift time(s) | 20 |
| Container descent time(s) | 20 |
| Weight distribution | |
| No load | |
| Front axle (kg) | 6000 |
| Rear axle (kg) | 9000 |
| Total weight (kg) | 15000 |
| Heavy load | |
| Front axle (kg) | 10000 |
| Rear axle (kg) | 40000 |
| Total weight (kg) | 50000 |
